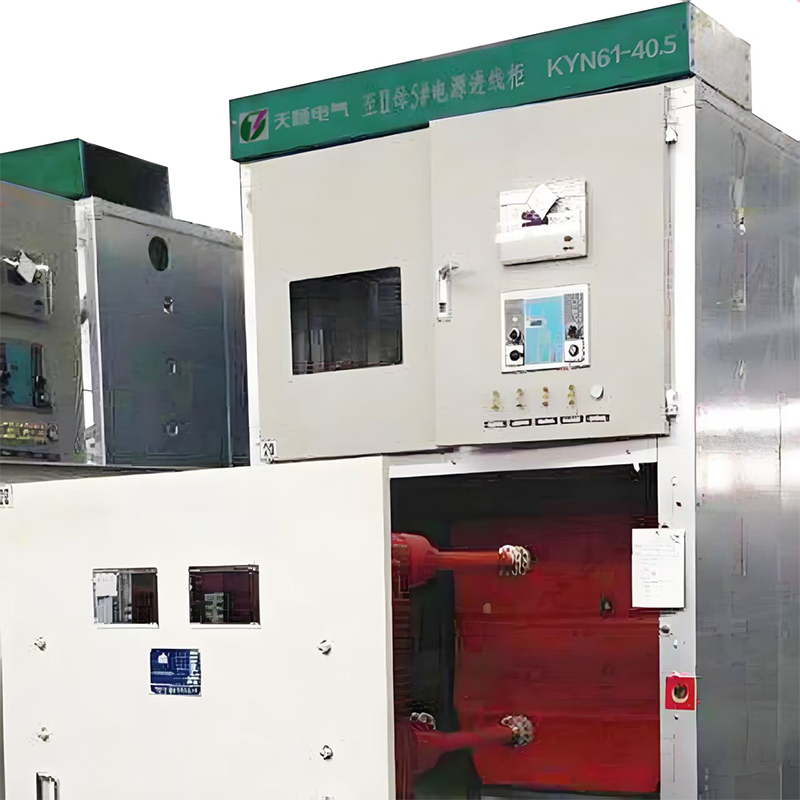

KYN61-40.5 High-Voltage (HV) Switchgear

Core Advantages of KYN61-40.5 High-Voltage (HV) Switchgear

The KYN61-40.5 High-Voltage (HV) Switchgear is a metal-clad, fixed-type switchgear widely used in power distribution systems rated up to 40.5kV. Its cabinet body adopts a fully enclosed metal structure, which effectively isolates each functional compartment and significantly reduces the risk of arc fault propagation between units. This design allows the rated short-time withstand current to reach 40kA/4s in many standard configurations, giving the equipment strong resistance against short-circuit impact.

Compared with open-type switchgear, the KYN61-40.5 High-Voltage (HV) Switchgear offers better personnel safety because live parts are fully shielded, and the interlocking mechanism prevents mis-operation between the circuit breaker, disconnector, and grounding switch. This makes it particularly suitable for industrial plants, substations, and renewable energy stations that require both compact installation and dependable safety margins.

Working Principle and Internal Structure

The KYN61-40.5 High-Voltage (HV) Switchgear operates by dividing the cabinet into several independent compartments, typically including the circuit breaker compartment, busbar compartment, cable compartment, and relay compartment. Each compartment is separated by metal partitions, so that a fault occurring in one section will not directly spread to adjacent sections.

Main Functional Compartments

1. Circuit breaker compartment: houses the vacuum circuit breaker on a withdrawable truck for isolation and maintenance;
2. Busbar compartment: connects the main busbars and transfers electrical energy between cabinets;
3. Cable compartment: accommodates incoming/outgoing cables, current transformers, and grounding switches;
4. Relay compartment: contains protection relays, metering devices, and control circuits.

When the withdrawable circuit breaker truck moves between the "test," "connected," and "disconnected" positions, mechanical interlocks automatically prevent operation errors, ensuring that maintenance personnel can safely access the compartment without residual voltage risk.

Typical Technical Parameters

Selecting the correct rated values is essential when specifying a KYN61-40.5 High-Voltage (HV) Switchgear for a project. The table below lists common parameter ranges used as a reference for engineering design.

Application Scenarios and Installation Considerations

The KYN61-40.5 High-Voltage (HV) Switchgear is commonly deployed in industrial power distribution rooms, urban substations, wind and solar power collection stations, and large commercial buildings. Because the cabinet is fully enclosed, it can be installed indoors with limited ventilation requirements, and its modular design allows multiple cabinets to be lined up and expanded according to load growth.

During installation, attention should be paid to the flatness of the foundation, proper grounding resistance, and sufficient clearance for the withdrawable truck to move in and out smoothly. Regular maintenance, such as checking the vacuum interrupter and cleaning insulation surfaces, helps extend the equipment's service life.

Ningbo Tianshun Electric Co., Ltd., located in Xiangshan Coastal Industrial Park, has a technical team with over 20 years of experience in the power transmission and distribution industry, offering installation guidance, commissioning, and after-sales support for switchgear products such as the KYN61-40.5 series, helping ensure stable long-term operation on site.

Frequently Asked Questions

Q1: What does the "40.5" in KYN61-40.5 High-Voltage (HV) Switchgear mean?

It refers to the rated voltage class of 40.5kV, indicating the maximum system voltage the switchgear is designed to handle safely.

Q2: Can the KYN61-40.5 High-Voltage (HV) Switchgear be installed outdoors?

This switchgear type is generally designed for indoor use. For outdoor applications, an additional protective housing or enclosure is typically required to prevent moisture and dust ingress.

Q3: How often should the circuit breaker compartment be inspected?

Routine visual inspection is recommended at least once a year, while a full mechanical and electrical test of the vacuum circuit breaker is generally advised every 3–5 years, depending on operating frequency and environmental conditions.

Q4: What certifications should a qualified KYN61-40.5 High-Voltage (HV) Switchgear manufacturer hold?

Reputable manufacturers typically hold certifications such as CCC and ISO 9001, which verify compliance with national safety standards and consistent quality management throughout production.
