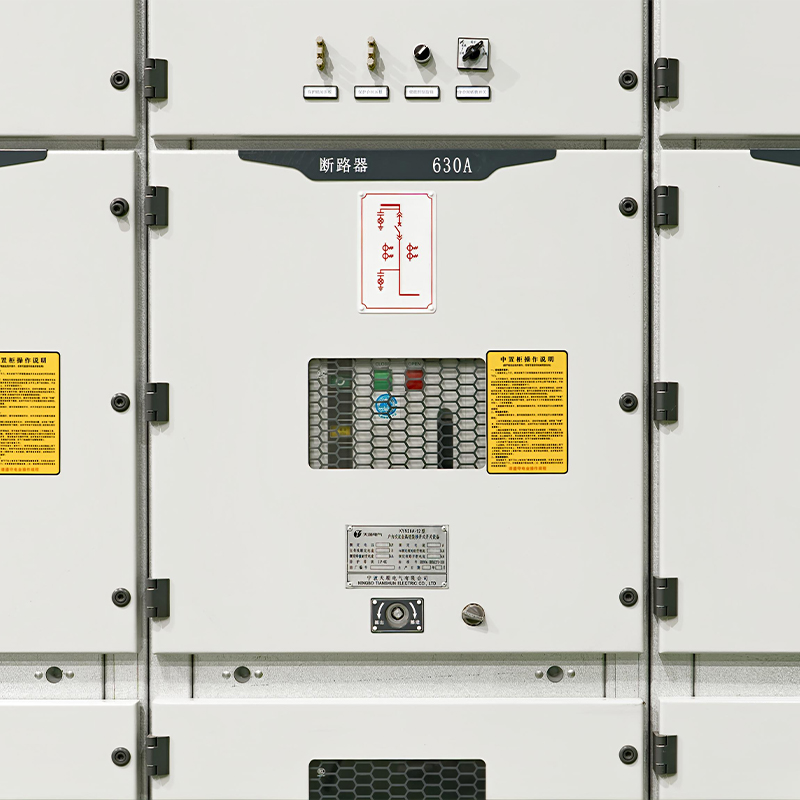

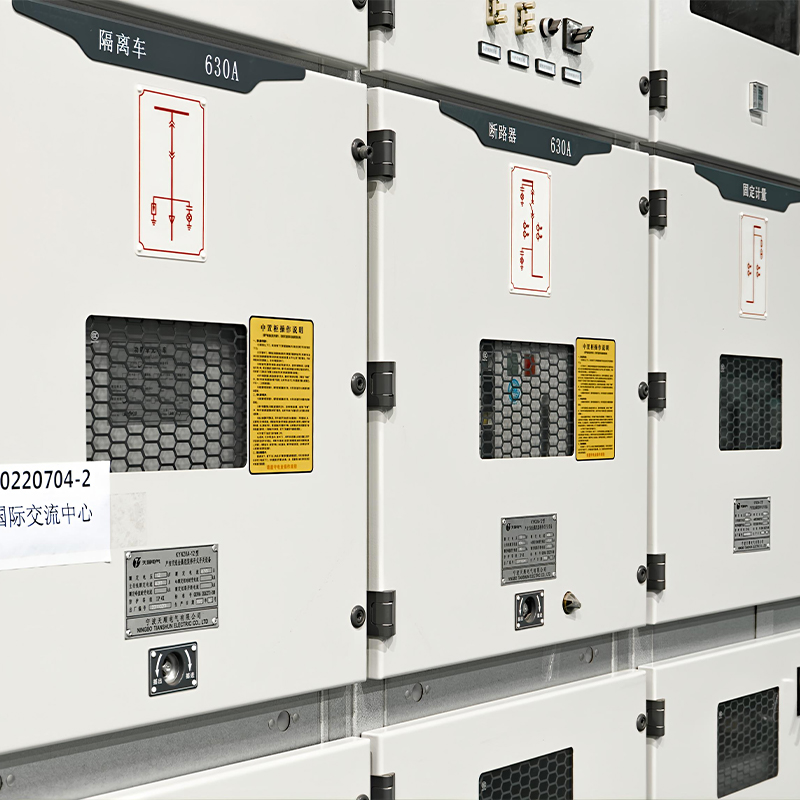

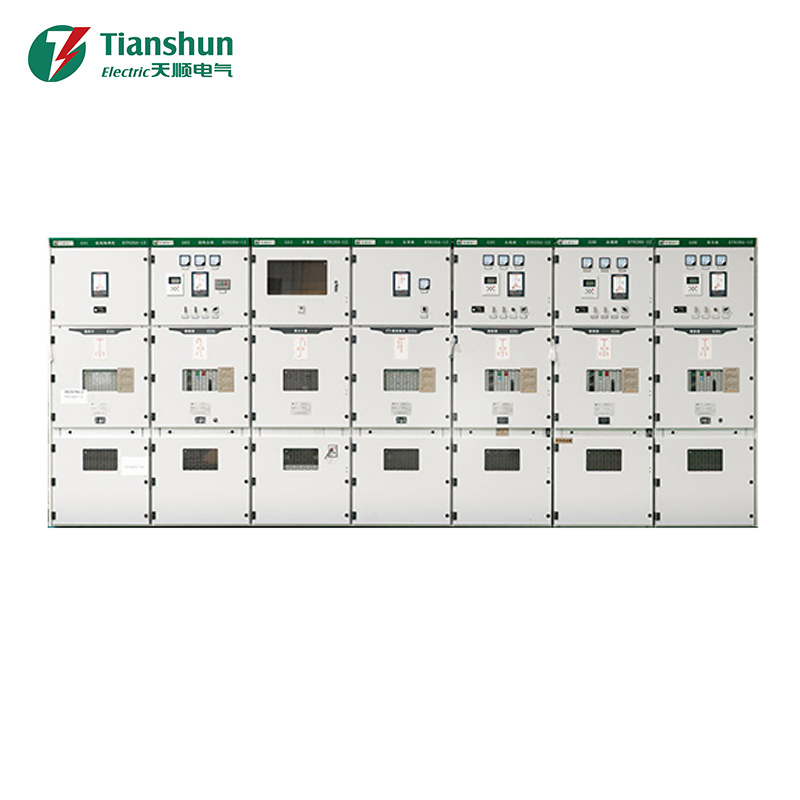

KYN28A-12 High-Voltage (HV) Switchgear

Core Advantages of KYN28A-12 High-Voltage (Hv) Switchgear

The KYN28A-12 High-Voltage (Hv) Switchgear is an armor-clad, withdrawable-type metal-enclosed switchgear designed for indoor power distribution systems rated up to 12kV. Its structure separates the busbar, circuit breaker, and cable compartments with metal partitions, which limits the spread of internal arc faults and improves overall operational safety. In common configurations, the rated short-time withstand current can reach 31.5kA/4s, giving the equipment strong tolerance to fault current impact.

Compared with fixed-type cabinets, the withdrawable circuit breaker truck of the KYN28A-12 High-Voltage (Hv) Switchgear allows maintenance personnel to isolate the breaker without de-energizing the entire busbar system, which shortens maintenance downtime. This feature makes it well suited for power distribution rooms in factories, commercial complexes, and substations that require both reliability and manageable maintenance costs.

Working Principle and Compartment Layout

The KYN28A-12 High-Voltage (Hv) Switchgear works by dividing the cabinet into independent functional compartments, each enclosed by grounded metal sheets. This arrangement ensures that if an internal fault occurs in one compartment, the pressure and heat generated will be contained rather than spreading to neighboring units.

Key Functional Compartments

1. Circuit breaker compartment: houses the vacuum circuit breaker mounted on a withdrawable truck;
2. Busbar compartment: transmits electrical energy between adjacent cabinets through the main busbars;
3. Cable compartment: accommodates incoming/outgoing cables, current transformers, and grounding switches;
4. Relay compartment: contains protection, metering, and control devices for monitoring the system.

A mechanical interlock system coordinates the movement of the circuit breaker truck between "test," "connected," and "disconnected" positions, preventing operators from mistakenly closing the breaker when the grounding switch is engaged, or vice versa.

Typical Technical Parameters

Choosing appropriate rated values is essential when specifying a KYN28A-12 High-Voltage (Hv) Switchgear for a given project. The table below lists common parameter ranges for reference during equipment selection.

Application Scenarios and Installation Considerations

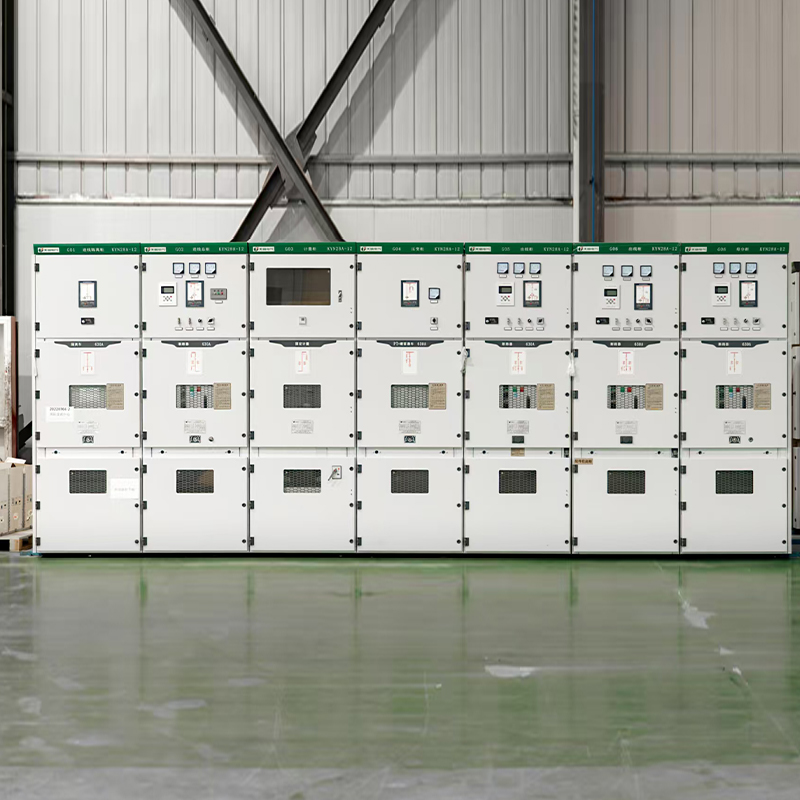

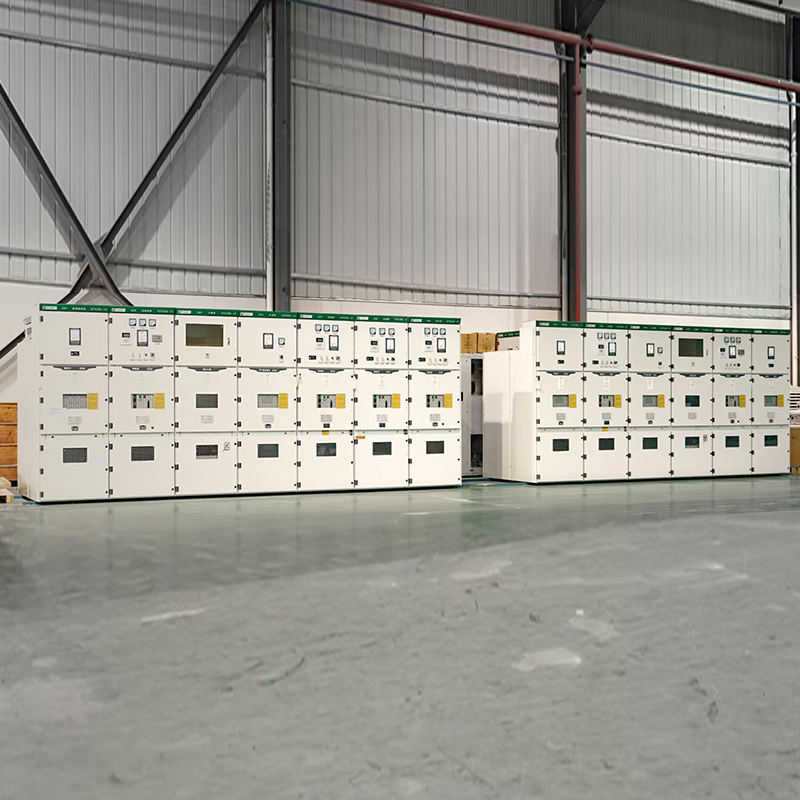

The KYN28A-12 High-Voltage (Hv) Switchgear is widely applied in industrial plants, urban distribution substations, commercial buildings, and renewable energy collection stations. Its compact footprint and modular cabinet design allow multiple units to be arranged in a row, making it easier to expand capacity as load demand grows over time.

During installation, the foundation should be level and firm, the grounding system should meet resistance requirements, and sufficient front clearance should be reserved for the circuit breaker truck to move in and out. Periodic maintenance, such as inspecting the vacuum interrupter and cleaning insulating surfaces, helps maintain long-term operational reliability.

Ningbo Tianshun Electric Co., Ltd., located in Xiangshan Coastal Industrial Park, has a technical team with over 20 years of experience in the power transmission and distribution industry, providing installation guidance, commissioning support, and fault handling services for switchgear products such as the KYN28A-12 series, helping ensure stable equipment performance in practical applications.

Frequently Asked Questions

Q1: What does the "12" in KYN28A-12 High-Voltage (Hv) Switchgear indicate?

It refers to the rated voltage class of 12kV, indicating the maximum system voltage that the switchgear is designed to operate under safely.

Q2: Is the KYN28A-12 High-Voltage (Hv) Switchgear suitable for outdoor installation?

This switchgear type is primarily designed for indoor environments. If outdoor deployment is required, an additional weatherproof enclosure is generally necessary to prevent moisture and dust from affecting internal components.

Q3: How does the withdrawable design improve maintenance efficiency?

Because the circuit breaker is mounted on a movable truck, it can be pulled out to the "test" or "disconnected" position for inspection without shutting down the entire busbar, reducing overall maintenance time and minimizing power interruption.

Q4: What certifications should a qualified switchgear manufacturer hold?

Reputable manufacturers typically hold certifications such as CCC and ISO 9001, which confirm compliance with national safety standards and consistent quality management throughout the production process.
