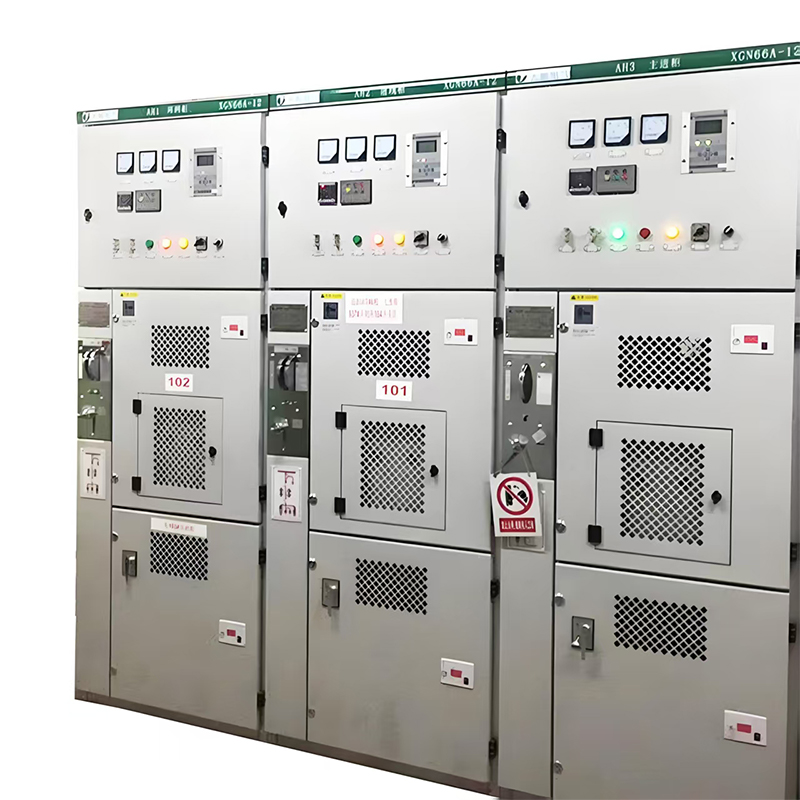

XGN66A-12 High-Voltage (HV) Switchgear

Overview of XGN66A-12 High-Voltage (HV) Switchgear

The XGN66A-12 High-Voltage (HV) Switchgear is a fixed-type metal-enclosed switchgear widely used in 12kV distribution networks, including substations, industrial plants, mining sites, and commercial buildings. It integrates circuit breakers, load switches, fuses, and protection relays into a compact, fully enclosed cabinet, allowing safe control and protection of medium-voltage circuits. Because of its modular structure, the XGN66A-12 High-Voltage (HV) Switchgear can be flexibly configured to meet different incoming, outgoing, metering, and PT (potential transformer) requirements within the same switchgear line-up.

Ningbo Tianshun Electric Co., Ltd. manufactures this switchgear series with strict adherence to national electrical standards, and the products have obtained multiple authoritative certifications, including CCC and ISO 9001, ensuring consistent quality across production batches.

Key Advantages of the XGN66A-12 High-Voltage (HV) Switchgear

Compared with open-type or drawer-type switchgear, the XGN66A-12 High-Voltage (HV) Switchgear offers several practical benefits for medium-voltage power distribution:

• Compact footprint — the metal-enclosed structure reduces installation space compared with open-air switchgear, which is valuable for substations with limited room.
• High safety level — the enclosure isolates live parts from operators, and interlocking mechanisms prevent misoperation such as closing a breaker with the door open.
• Flexible cabinet combinations — incoming, outgoing, PT, metering, and busbar cabinets can be assembled into one switchgear line-up according to project needs.
• Low maintenance requirement — the fixed-type design has fewer moving contact points than drawer-type switchgear, reducing the frequency of routine inspection.
• Cost efficiency — the simplified structure lowers manufacturing and installation costs while still meeting the protection needs of most 12kV distribution scenarios.

Working Principle of the XGN66A-12 High-Voltage (HV) Switchgear

The XGN66A-12 High-Voltage (HV) Switchgear works by housing the primary circuit components — busbars, circuit breakers or load switches, current transformers, and grounding switches — inside a grounded metal enclosure divided into separate compartments. When current flows through the busbar compartment, it is directed to the circuit breaker compartment, where the breaker can interrupt the circuit under normal load or fault conditions. Protection relays continuously monitor current and voltage signals; once an abnormal condition such as a short circuit or overload is detected, the relay sends a trip signal to open the breaker within milliseconds, isolating the fault section from the rest of the network.

Compartment Structure

A typical cabinet is divided into four compartments: the busbar compartment, the circuit breaker (or switch) compartment, the cable compartment, and the low-voltage control/meter compartment. This separation limits the spread of arc energy in the event of an internal fault and simplifies maintenance, since technicians can access one compartment without exposing the others.

Typical Technical Parameters

The table below lists common parameter ranges for 12kV fixed-type metal-enclosed switchgear such as the XGN66A-12 series, which project engineers can use as a general reference when comparing configurations.

Selection and Installation Considerations

When selecting an XGN66A-12 High-Voltage (HV) Switchgear line-up, engineers should first confirm the load current and short-circuit level of the site, then determine the number and type of cabinets required — such as incoming cabinets, outgoing cabinets, PT cabinets, and busbar-tie cabinets. It is also important to check that the installation room provides sufficient ventilation and clearance around the switchgear for future maintenance access.

Ningbo Tianshun Electric Co., Ltd. supports customers with one-stop services covering R&D, production, and after-sales support, and its technical team — with over 20 years of experience in the power transmission and distribution industry — can assist with cabinet selection, on-site installation guidance, and commissioning to ensure the switchgear operates reliably once energized.

Frequently Asked Questions

Q1: What is the difference between the XGN66A-12 High-Voltage (HV) Switchgear and drawer-type switchgear?

The XGN66A-12 is a fixed-type switchgear, meaning the circuit breaker or switch is permanently installed inside the compartment rather than mounted on a withdrawable truck. This makes the structure simpler and more cost-effective, though replacing an internal component typically requires taking the cabinet out of service, unlike drawer-type designs that allow the breaker to be racked out for maintenance.

Q2: Can the XGN66A-12 High-Voltage (HV) Switchgear be used outdoors?

The standard XGN66A-12 series is designed for indoor installation. For outdoor applications, the switchgear needs to be housed in a weatherproof kiosk or substation enclosure to protect it from moisture, dust, and temperature extremes.

Q3: How often does the XGN66A-12 High-Voltage (HV) Switchgear need maintenance?

Routine visual inspection is generally recommended every six to twelve months, covering checks of the busbar connections, grounding switch operation, and relay settings. Actual intervals should follow the maintenance schedule specified by the manufacturer and local grid operation requirements.

Q4: What certifications does the XGN66A-12 High-Voltage (HV) Switchgear typically hold?

Reputable manufacturers, including Ningbo Tianshun Electric Co., Ltd., produce this switchgear series under CCC and ISO 9001 certification frameworks, which cover product safety compliance and quality management throughout the manufacturing process.
